SimFat is a powerful tool for fatigue evaluation. We designed SimFat to be an easy to use, quick and diverse to support daily development needs. Take a quick look at some of features and capabilities.
Feature focus
![FKM_Guideline](uploads/images/FKM/FKM_Guideline.png)

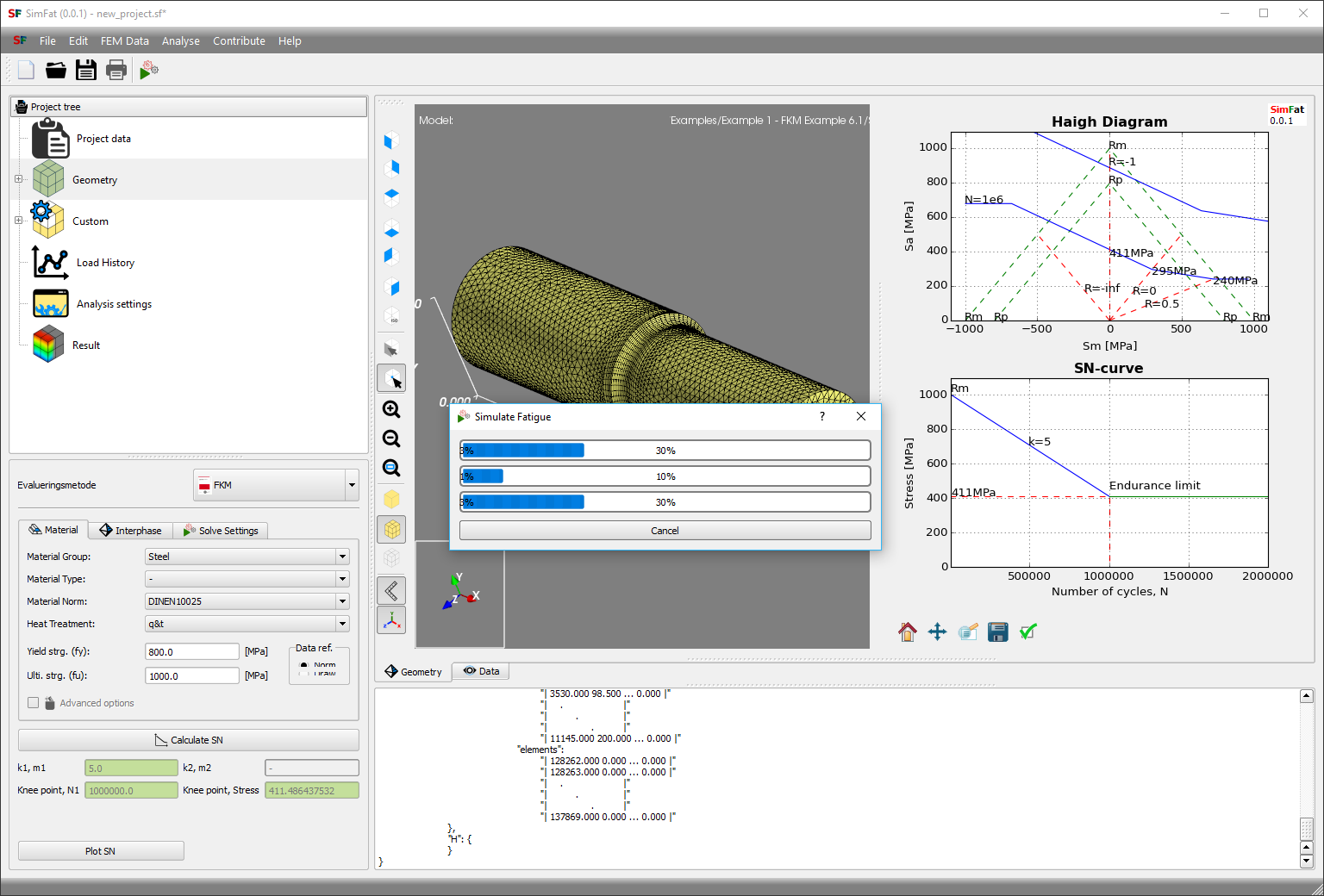

Fatigue of machined metal parts can be evaluated after the German FKM Guideline (Analytical Strength Assessment 5'th edition).
![Custom SN curve custom](uploads/images/custom.png)
It is possible to define individual part evaluations methods. Here both SN curve and detail evaluation code can be chosen and modified.
![Custom SN curve snapshot4](uploads/images/snapshot4.png)

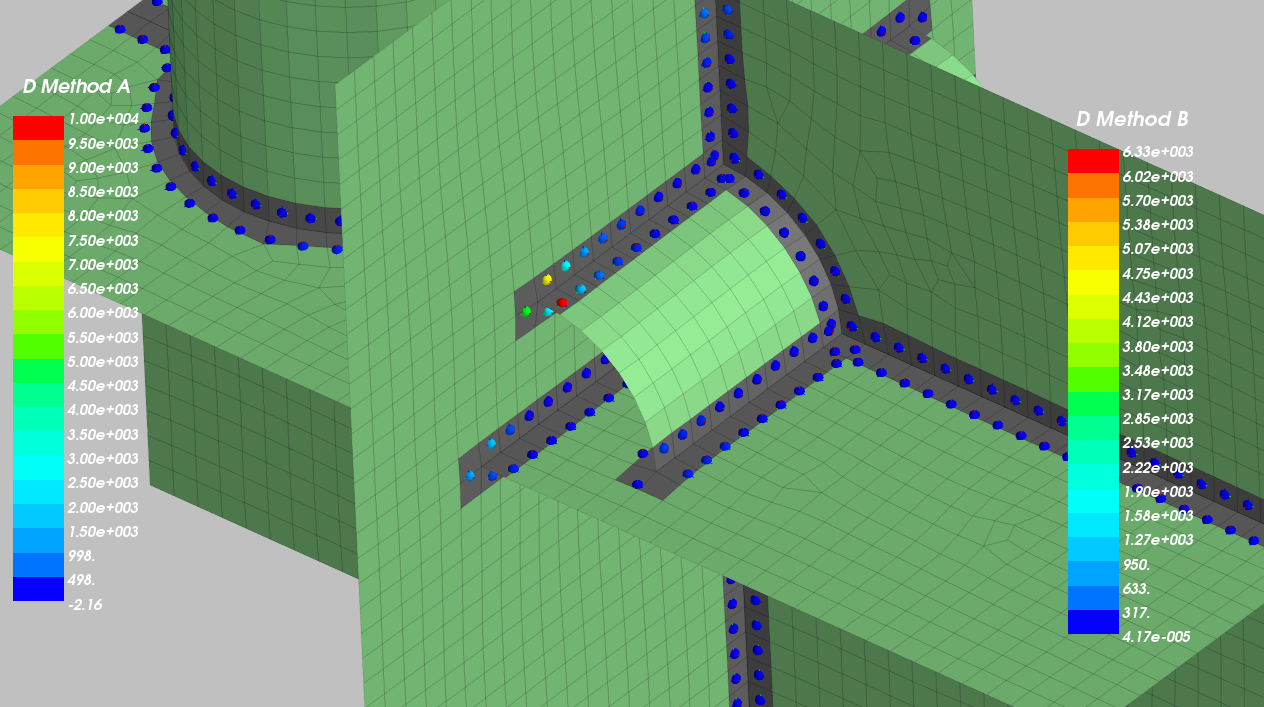

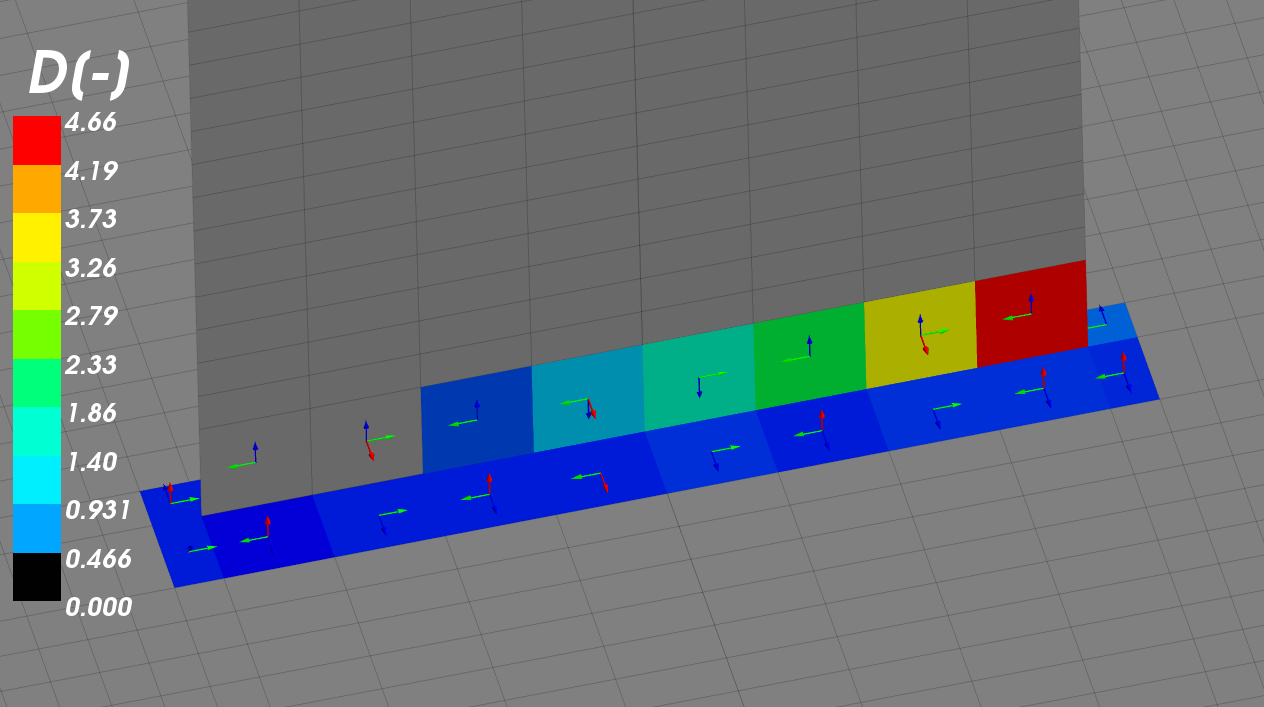

Basic implementation of DNV/GL RP 203 is added to the software. This include automated weld path detection, material thickness and interpolation.
![Custom SN curve PTC Creo Logo](uploads/images/PTC_Creo.png)
FE model import from PTC Creo Simulate is made easy with a couple of click and you are up and running.
